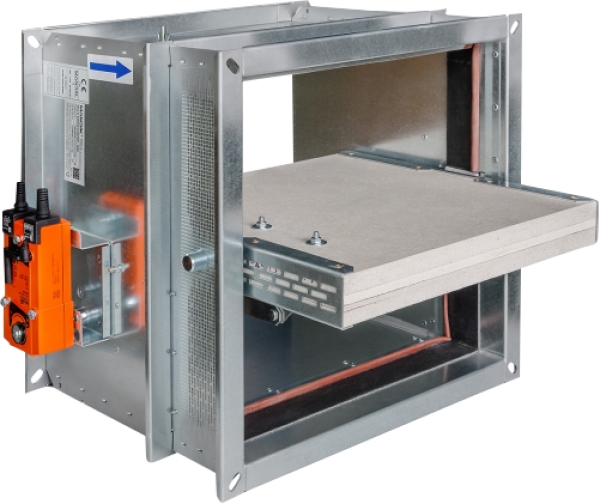

MSD – Multi compartment smoke extraction damper allows usage in smoke extraction ducting systems.
Characteristics
Square dampers from 160 × 180 mm to 1500 x 800 mm
Round dampers from ø180 to 630 mm
CE certified acc. to EN 12101-8
Tested in accordance with EN 1366-10
Classified acc. to EN 13501-4+A1 as
EIS 120, actuating AA for multi Fire Compartment
Cycling acc. to EN 12101-8:
MSD square dampers – Cmod
MSD, MSD-W round dampers – C10000
MSD-W square dampers – C10000 (tested without load acc. to EN 1366-10)
External Casing leakage class C, Internal leakage class 2 acc. to EN 1751
Damper actuating by electrical actuator
Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to -1500 Pa
