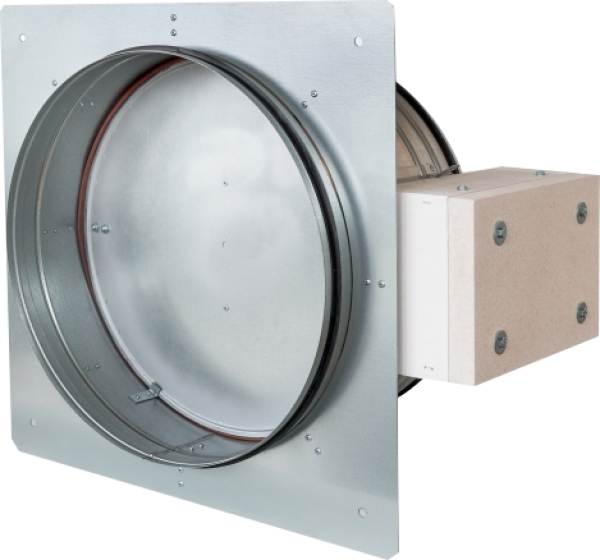

SEDS-R – Single comparement smoke extraction damper allows usage in smoke extraction ducting systems. Suitable for heat and smoke extraction from one comparement.
Characteristics
Round dampers from ø 100 to 630 mm
CE certified acc. to EN 12101-8
Tested in accordance with EN 1366-10
Classified acc. to EN 13501-4+A1 as ES90/600, actuating AA for one Fire Compartment
External Casing leakage class B, Over blade min. class 4, diameter 100 min. class 3
Cycling test in class C 300 acc. to EN 12101-8
Damper actuating by electrical actuator
Max. air speed in the system of 15 m/s, allowed pressure up to 500 Pa, or underpressure up to – 1500 Pa
